How much faster is P-WIRE compared to standard brass wire?

Independent customer testing shows P-WIRE delivers 31% to 47% faster EDM cutting speeds compared to standard brass wire under identical conditions. On Mitsubishi MV2400S: 227 min (brass) to 154 min (P-WIRE). On MP1200: 271 min (brass) to 207 min (P-WIRE).

Does P-WIRE reduce wire breakage on thick workpieces?

Yes. A customer machining a 60mm thick steel workpiece reported zero wire breakage with P-WIRE, while standard brass wire snapped mid-cut causing the machine to slow down after re-threading.

What EDM machines is P-WIRE compatible with?

P-WIRE works on all major EDM brands including Mitsubishi MV Series, Sodick, Makino, GF AgieCharmilles, FANUC, and Seibu. Customer tests verified on Mitsubishi MV2400S and MP1200 with wire diameters from 0.20mm to 0.25mm.

How can I test P-WIRE on my own EDM machine?

JIELINK offers a Performance Trial program. Purchase one trial spool and run your own comparison on your machine. If P-WIRE delivers the promised performance and you place a follow-up order, your first spool cost is credited back. Contact info@edmmasters.com for trial pricing.

What is the difference between coated EDM wire and standard brass wire?

Coated EDM wire like P-WIRE features an advanced surface coating that improves electrical conductivity, heat dissipation, and spark erosion consistency. This results in faster cutting speeds (31-47%), less wire breakage, and better surface finish compared to uncoated brass wire, especially on thick workpieces and long cuts.

JIELINK Exclusive — P-WIRE Series

Ultra-HIGH Speed EDM Cutting Wire

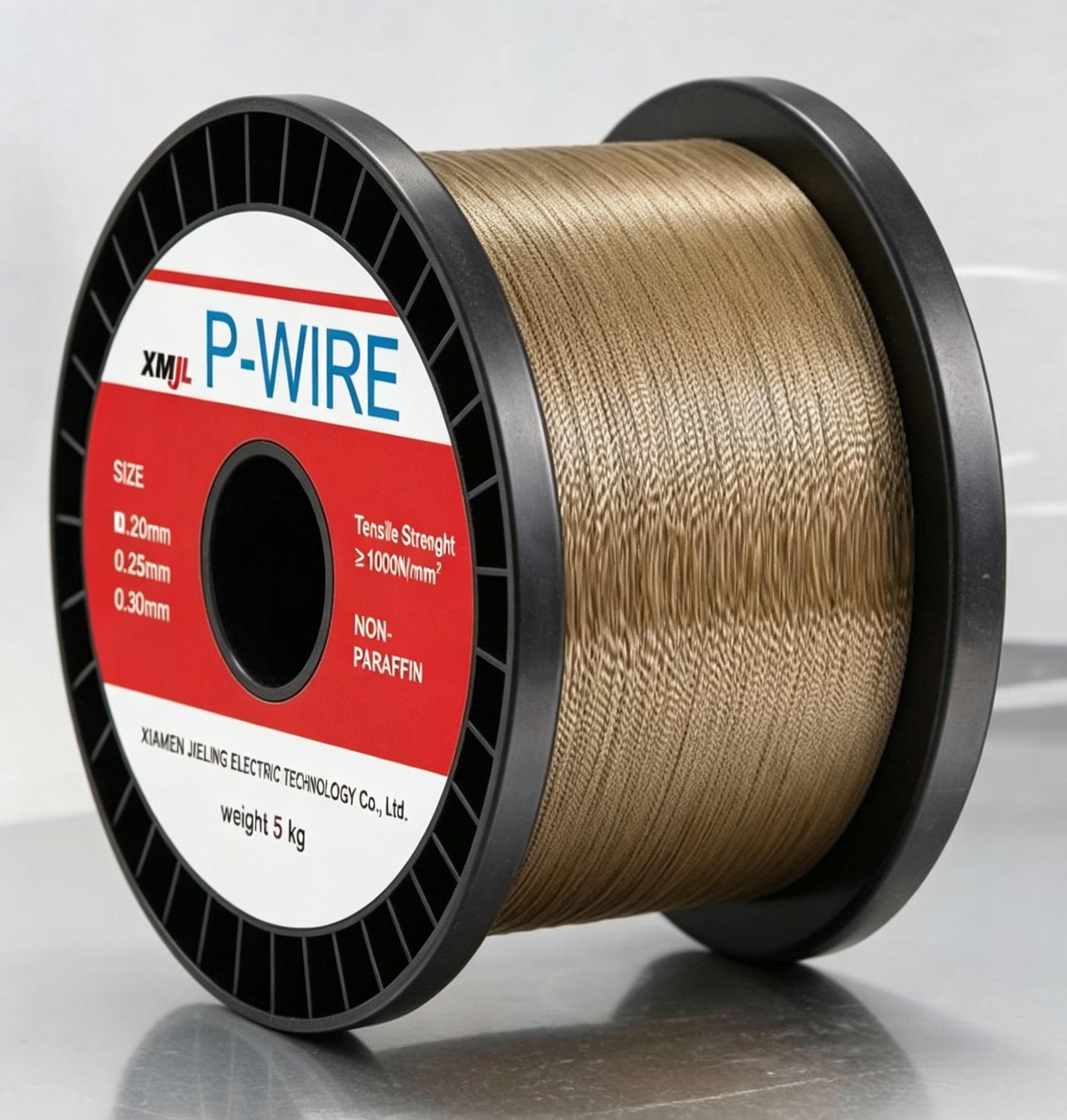

Name: P-WIRE Ultra-HIGH Speed Cutting Wire
Brand: JIELINK
SKU: EC-BW-PW-001
Price: 248.00 USD
Availability: InStock
Rating: 5 (3 reviews)

CuZn35 reinforced composite wire engineered for shops that track cost-per-part. Customer-tested at up to 30% faster cutting under optimal conditions.

Get a Trial Spool → View Specs ↓

Up to 30%

Faster Cutting

Best

Value

±0.001mm

Diameter Tolerance

900 N/mm²

Tensile Strength

📊 View Customer Case Studies — 47% Faster on MV2400S →

Technical Specifications

Every spool measured before packaging. Batch QC report included.

Parameter	Specification	Notes
Material	CuZn35	35% Zinc for optimal speed-strength balance
Surface	Reinforced Composite Coating	Gamma-phase zinc layer — lower vaporization temp = faster cutting
Diameter	0.20mm / 0.25mm / 0.30mm	±0.001mm tolerance
Tensile Strength	900 N/mm²	High strength = less breakage at speed
Spool Weight	5 KG	Standard P5 spool; other weights available
Max Cutting Speed	160 mm²/min	Verified on Mitsubishi MV series (0.25mm, SKD11 60mm)
Auto-Threading	✅ Excellent	Stiff enough for reliable auto-threading; soft enough to avoid guide wear
Breakage Rate	Low	Reinforced composite surface reduces micro-cracking under tension

Head-to-Head: P-WIRE vs Standard Brass Wire

Same machine. Same workpiece. Same program. Real production data.

P-WIRE Ultra-HIGH Speed★ JIELINK

Inquire for pricing

160 mm²/min cutting speed
±0.001mm diameter tolerance
Reinforced composite coating
900 N/mm² tensile strength
Low breakage rate
Excellent auto-threading
Free trial spool available

Standard Brass WireCompetitor

Higher cost

119 mm²/min cutting speed
±0.003mm tolerance (typical)
Uncoated brass only
750–850 N/mm²
Frequent breaks at speed
Inconsistent threading
No trial available

* Comparison based on standard production test: Mitsubishi MV, 0.25mm wire, SKD11 tool steel 60mm thickness.

⚠️ Actual results vary depending on machine type & model, equipment condition & maintenance, workpiece material & thickness, cutting parameters & settings, shop environment (temperature & humidity), and dielectric fluid quality. Best results are achieved when the EDM machine is operating under normal conditions without machining abnormalities such as wire breakage, unstable discharge, or worn power feed contacts. We recommend testing P-WIRE on your own machine with your typical workpiece to determine actual performance improvement.

Who Should Use P-WIRE?

🏭 High-Volume Production Shops

If your machines run 24/7 and wire cost is a line item on your P&L, P-WIRE cuts your wire spend nearly in half while increasing throughput.

📐 Precision Tool & Die

±0.001mm tolerance and low breakage rate mean predictable, repeatable cuts on high-value workpieces. No scrapped parts from wire breaks.

🌍 Export-Focused Shops

DDP shipping to 30+ countries. Trial spool available — test P-WIRE on your own machine, your own workpiece, your own program before committing.

Real Customer Conversations

Unedited WhatsApp / WeChat feedback from shops running P-WIRE in production. Screenshots shown with permission — names hidden for privacy.

🇯🇵

Precision Mold Shop — Japan

Same customer, two different machines — both tested with P-WIRE vs standard brass wire under identical conditions

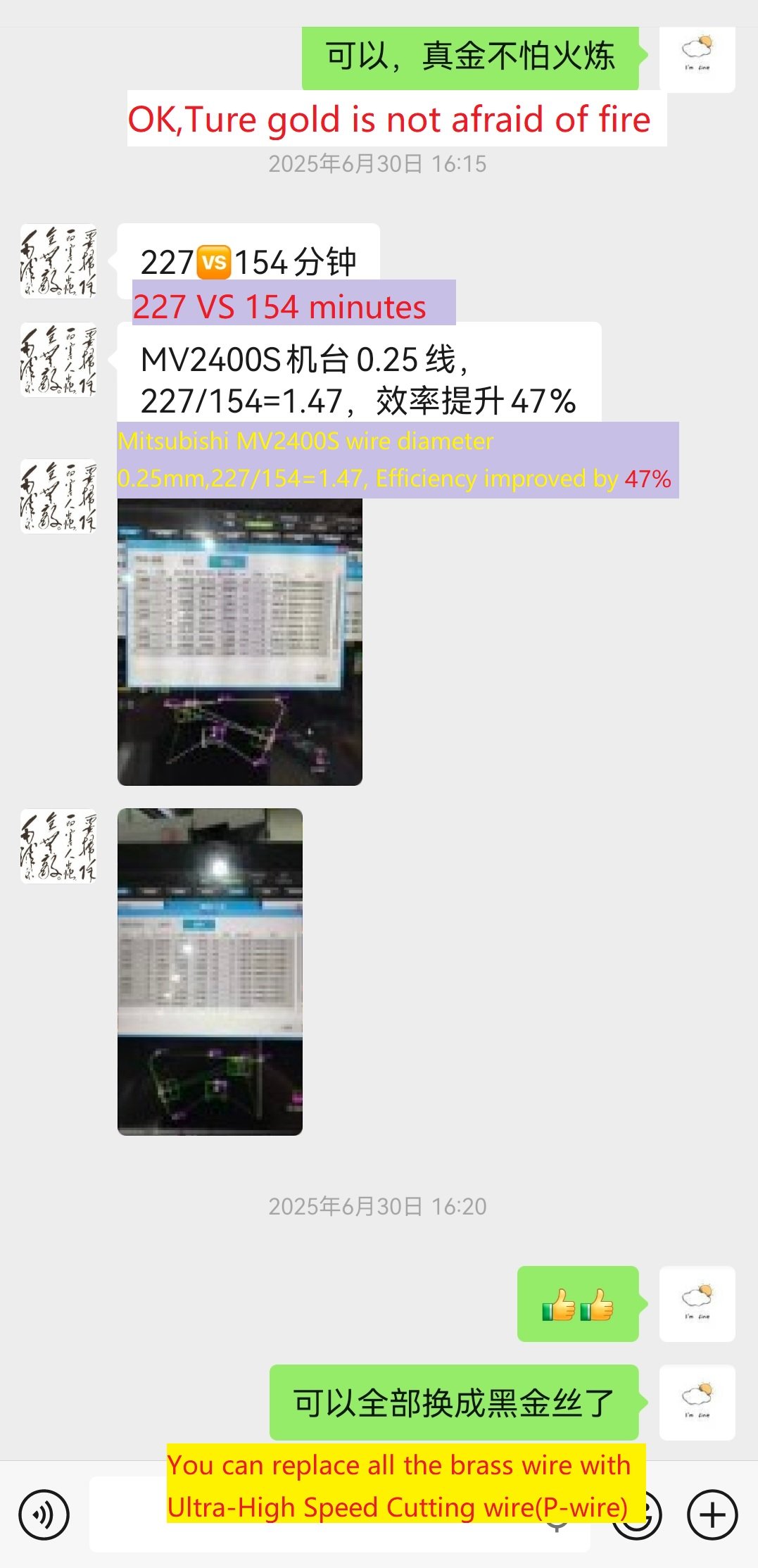

P-WIRE vs Brass on Mitsubishi MV2400S — 47% faster, 227→154 min

Machine A: Mitsubishi MV2400S
47% Faster · 227→154 min

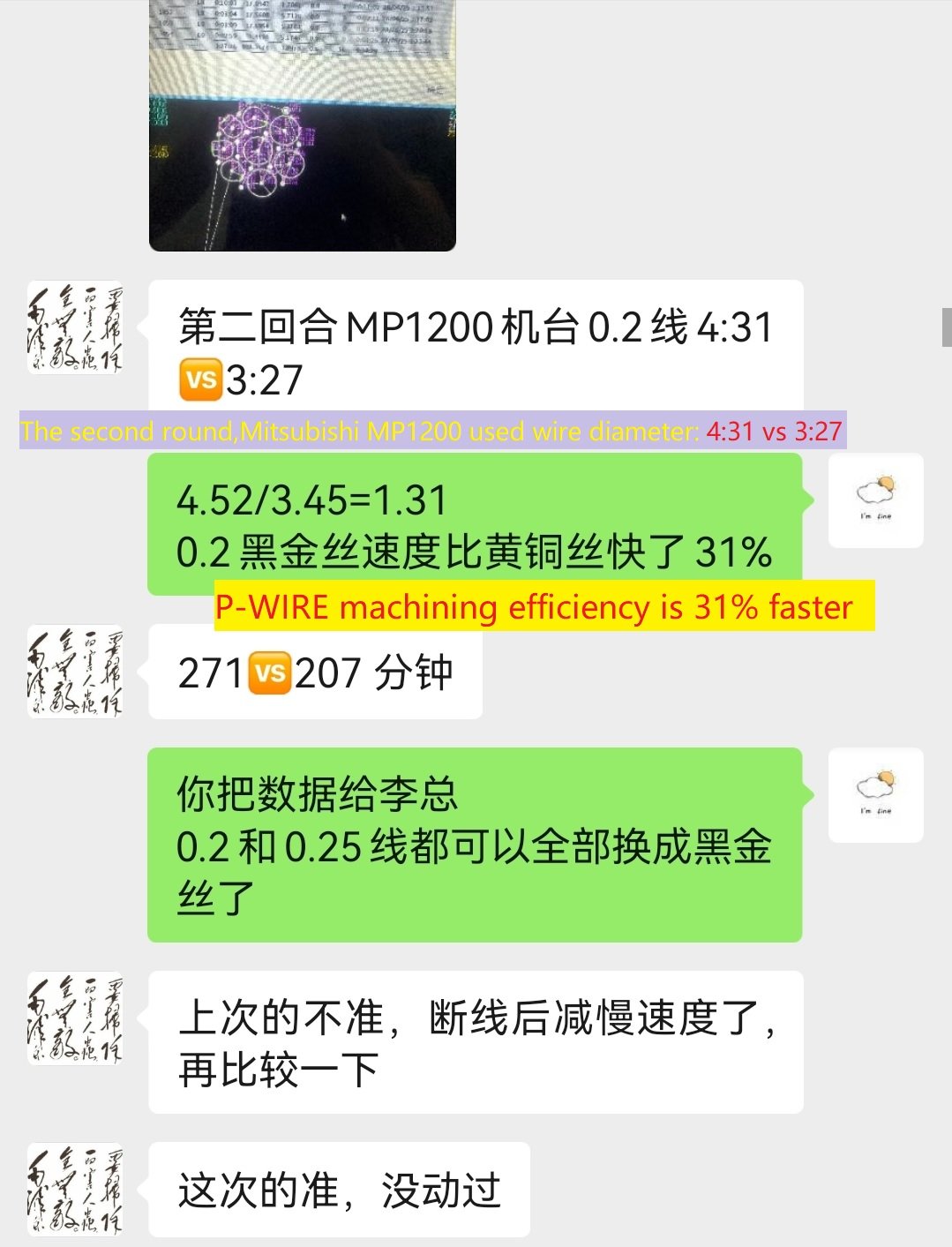

P-WIRE vs Brass on Mitsubishi MP1200 — 31% faster, 271→207 min

Machine B: Mitsubishi MP1200
31% Faster · 271→207 min

Key Result: Same machine, same workpiece, same program. P-WIRE cut significantly faster with zero wire breakage on both machines. Standard brass wire broke during the cut on MV2400S, causing machine to slow down after re-threading. Customer now uses P-WIRE for daily production.

🔧

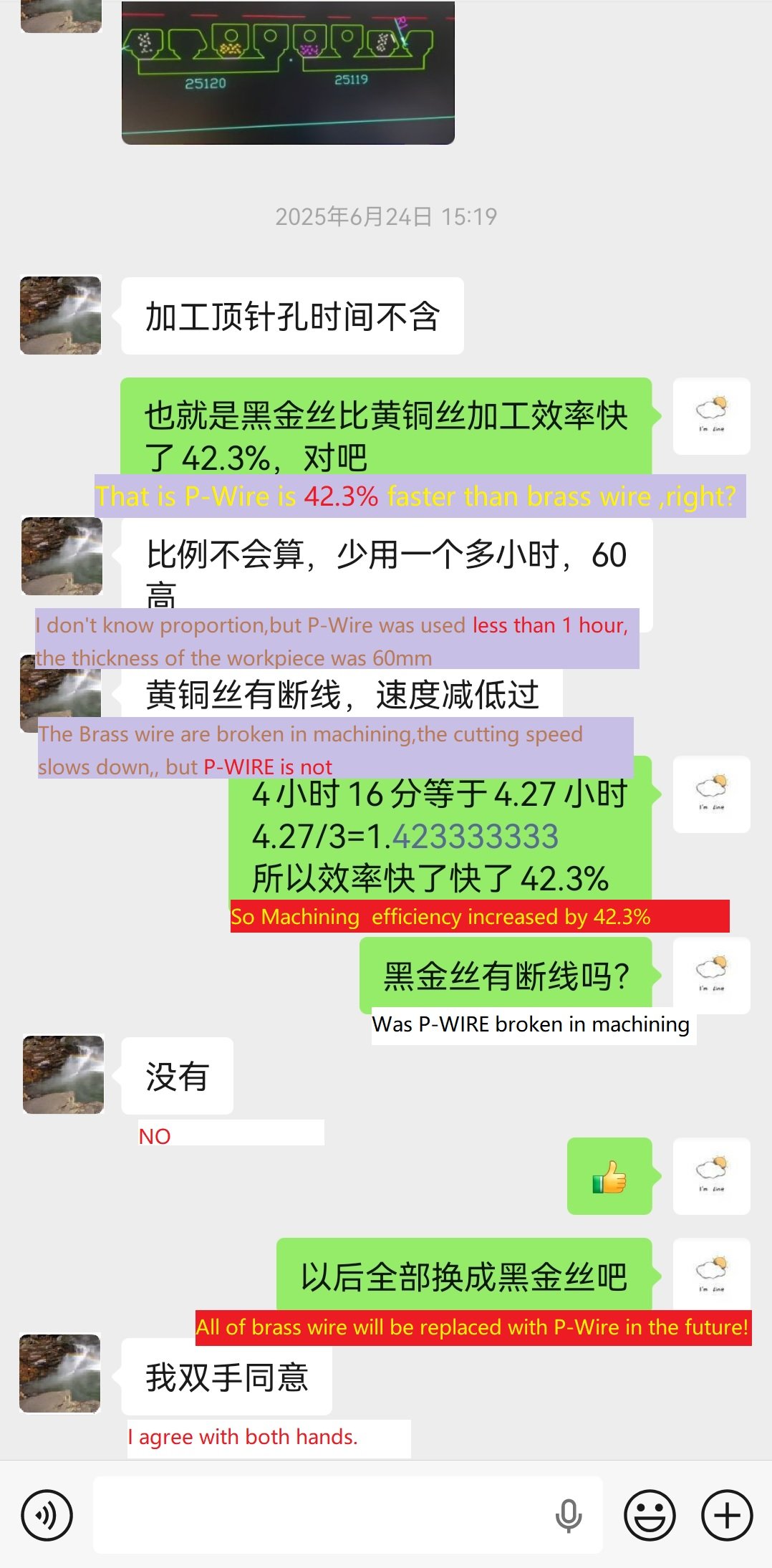

P-WIRE (Black Gold Wire) — Direct Customer Feedback

Real conversation — customer sharing actual experience after using P-WIRE in daily production

P-WIRE Black Gold Wire customer feedback screenshot

Click to view full conversation ↗

Machine Data: P-WIRE vs Standard Brass Wire

Unedited machine screen photos — same customer, same machines, same programs. The only variable: the wire.

🇯🇵 Machine A: Mitsubishi MV2400S — 47% Faster

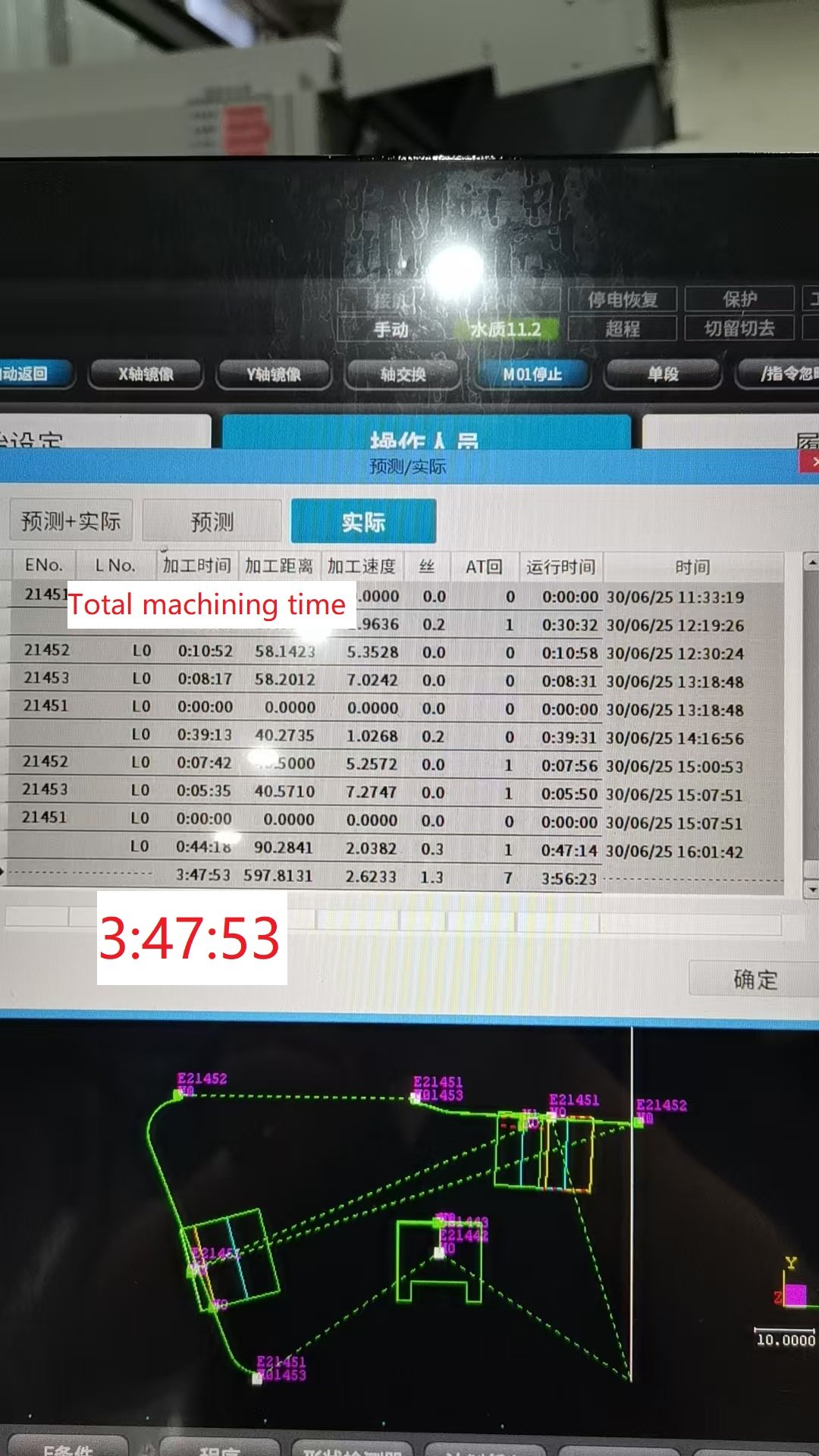

Standard Brass Wire — 227 min

Standard brass wire cutting data on Mitsubishi MV2400S — 227 minutes total

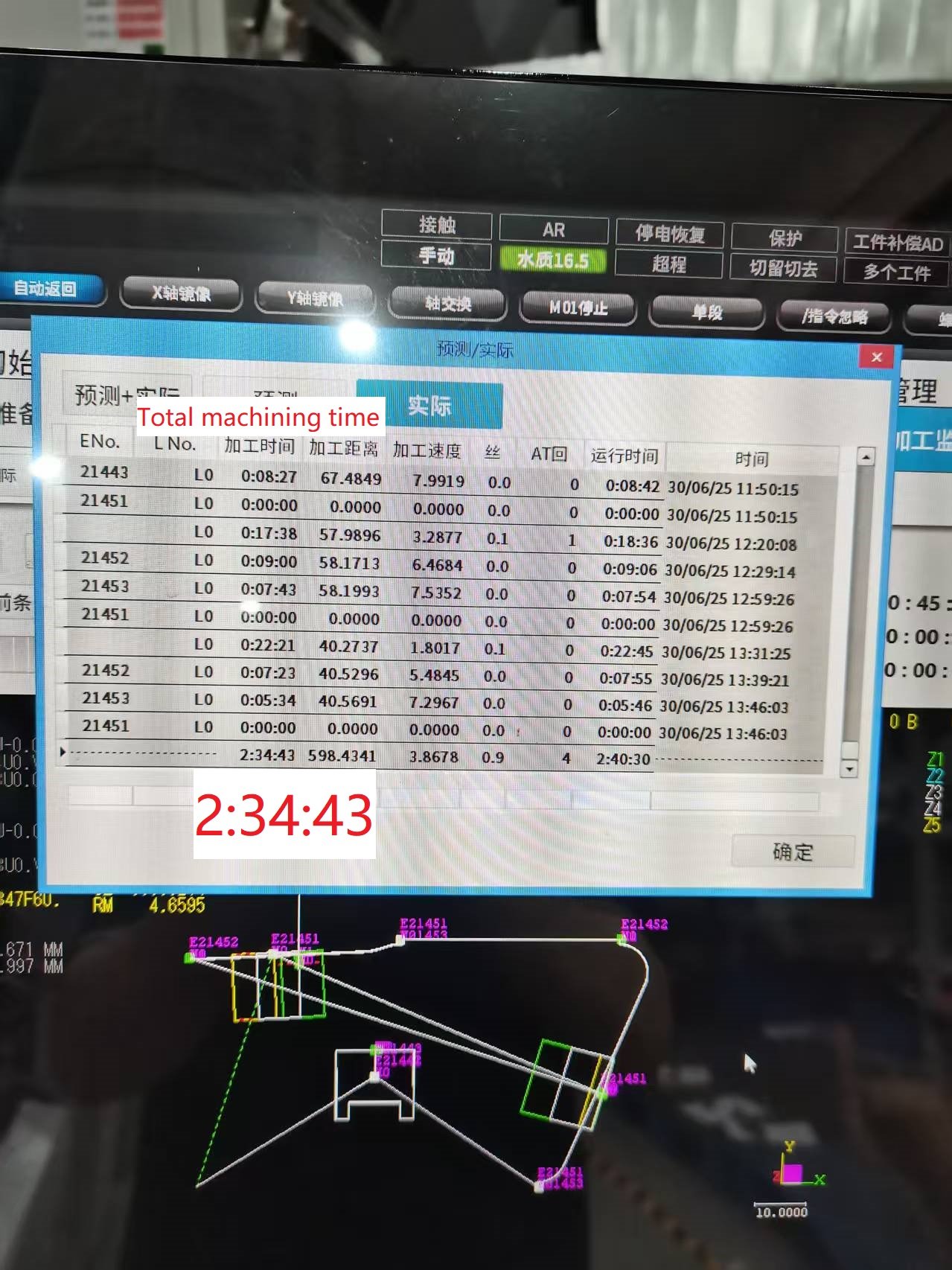

P-WIRE — 154 min ★

P-WIRE cutting data on Mitsubishi MV2400S — 154 minutes total, 47% faster

73 minutes saved · 47% faster · Zero wire breakage

🇯🇵 Machine B: Mitsubishi MP1200 — 31% Faster

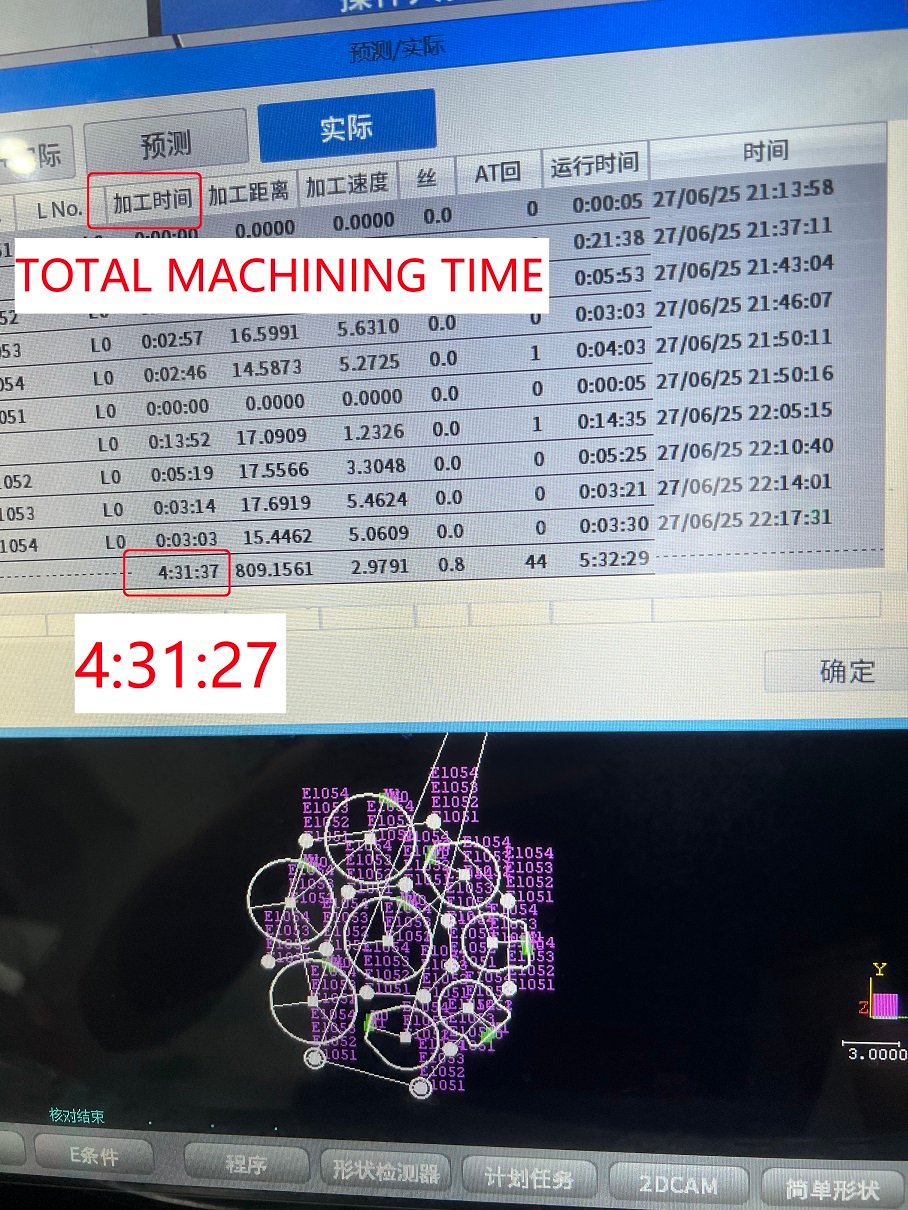

Standard Brass Wire — 271 min

Standard brass wire cutting data on MP1200 — 271 minutes total

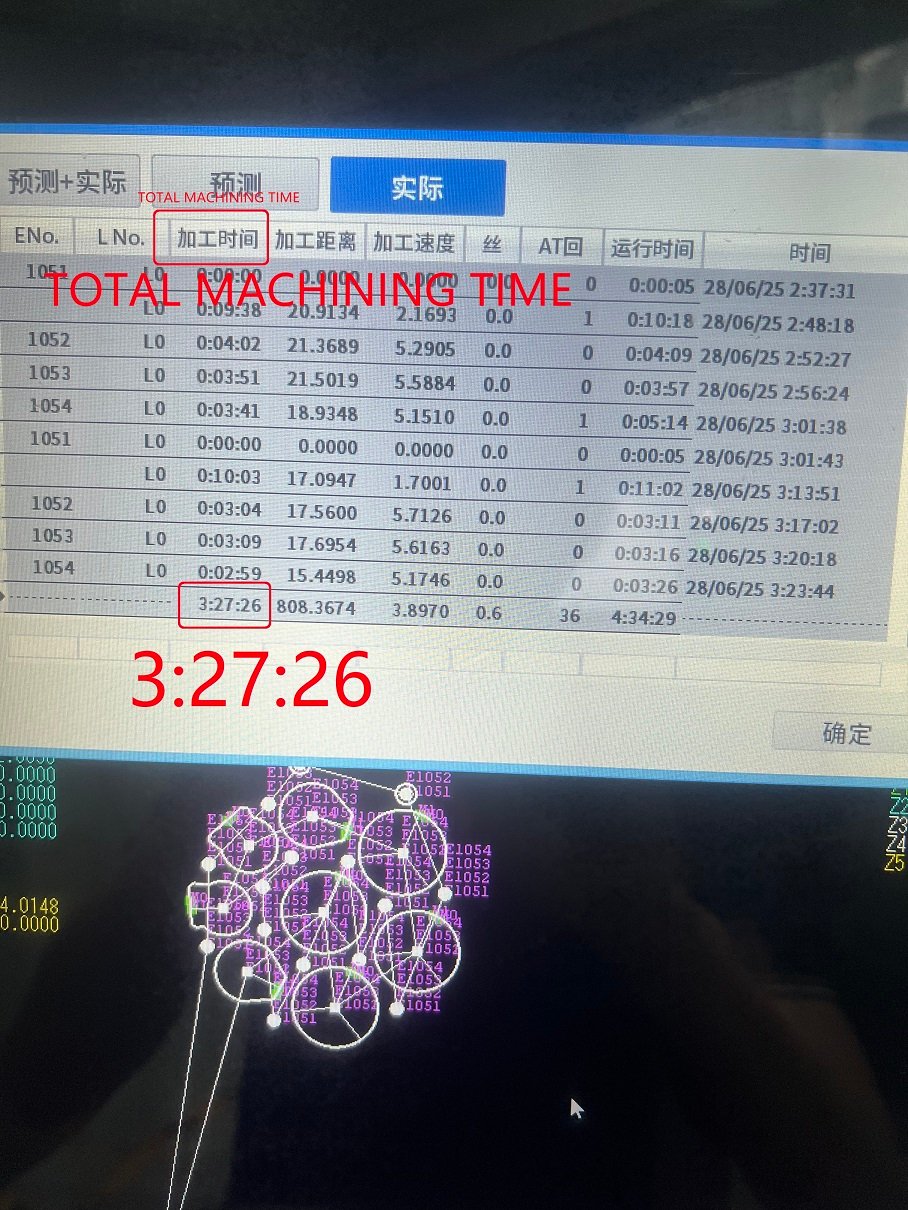

P-WIRE — 207 min ★

P-WIRE cutting data on MP1200 — 207 minutes total, 31% faster

64 minutes saved · 31% faster · Consistent across shifts

* Images are unedited machine screen photos from the customer. Click any image to enlarge.

Estimate Your Time Savings With P-WIRE

Based on verified customer data. Enter your monthly wire consumption to see how many machine hours you could save.

Your Monthly Wire Consumption (KG)

→

Estimated Machine Hours Saved / Month

Based on ~30% time reduction under optimal conditions

Your Est. Cutting Hours/Mo

250

With P-WIRE Hours/Mo

170

Extra Capacity Gained

* Assumes ~0.4 KG wire consumed per cutting hour (industry average). Actual improvement depends on machine type & condition, workpiece material & thickness, and cutting parameters. Best results under normal operation without machining abnormalities. Request a trial spool to test on your own setup.
